Ships of the California Naval Militia
USS Monadnock

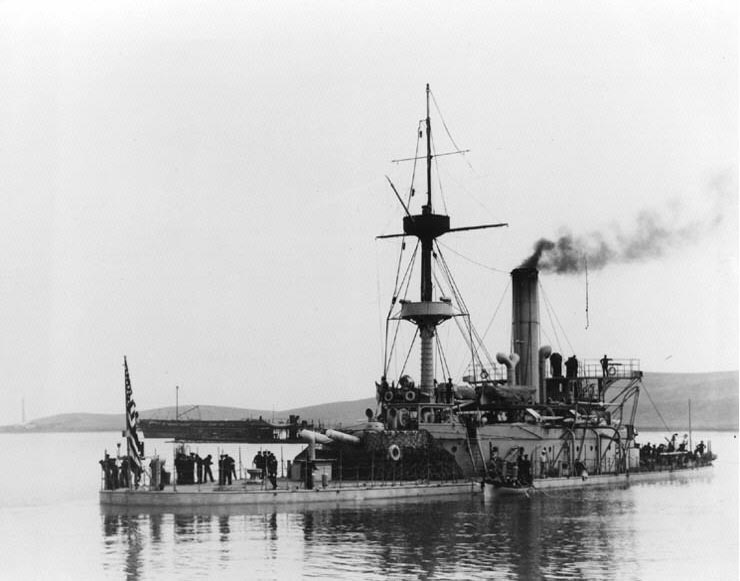

Off the Mare Island Navy Yard, CA, June 1898, ready for her voyage to the Philippines. The old monitor USS Camanche (1864-1899) is visible beyond Monadnock's after turret. (Photograph courtesy of the US Navy Historical Center)

USS Monadnock, a 3990-ton monitor, was built over a 22-year period at Vallejo and Mare Island, California, finally commissioning in February 1896. During the next two years, she served with the Pacific Squadron in the U.S. west coast area. In June 1898, she departed San Francisco on a two-month voyage to the Philippines, where she was needed to provide heavy-gun support following Admiral Dewey's victory at Manila Bay.

Monadnock remained in the Far East to the end of her career, serving in Philippine and Chinese waters. She decommissioned for the last time in March 1919 and was sold in August 1923.


Specifcations
Classification Amphitrite Class Monitor Laid Down 1874 Launched 19 September 1883 Commissioned 20 February 1896 Builder Phineas Burgess at the Continental Iron Works, Vallejo, Calif., and Mare Island Navy Yard, San Francisco, Calif. Rig One military mast Armament Four 10 inch (254 mm) breechloading guns Two 4 inch (100 mm) rapid fire guns Two 6 pounder (57 mm) rapid fire guns Two 3 pounder (47 mm) rapid fire guns Two 37 mm Hocthkiss guns Seven one pounder gun One Colt revolving guns Length 262 feet, 9 inches Beam 55 feet, 10 inches Draft 14 feet, 6 inches Displacement 3,990 tons Complement 171 Officers and Enlisted Men Engine Type Two engines generating 1,600 hp., 2 screws Speed 11.63 knots on trials Coal endurance 1800 nautical miles at 10 knots Normal coal supply 250 tons Armor Armor belt - 180 mm, iron.. Conning Tower - 190 mm Chimneys and ventilators - 100 mm to height of .9 m Deck - 40 mm Turrets - 292 mm (fixed portion) and 190 mm (movable portion) Double bottom under boilers and engines. :

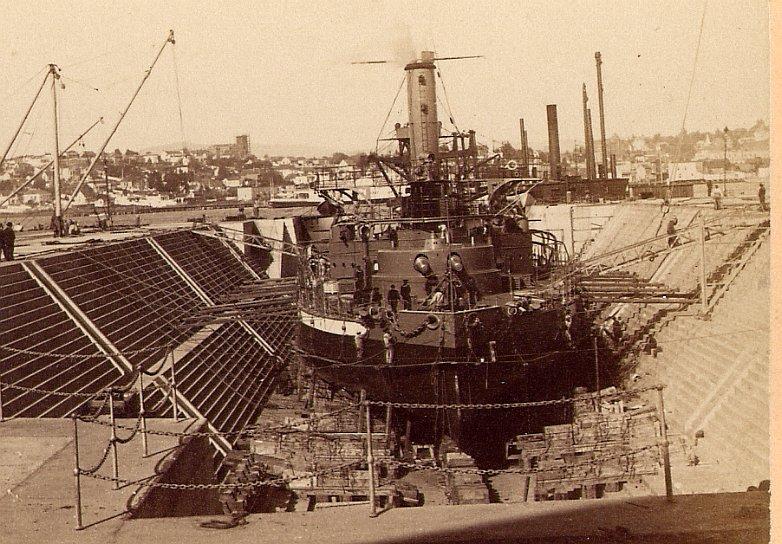

In drydock at Mare Island

[WELCOME] [LOCATION AND HOURS] [CURRENT EXHIBITS] [MG WALTER P. STORY LIBRARY] [SATELLITE AND PARTNER MUSEUMS]
[HOW CAN I HELP?] [WHAT'S NEW?] [UPCOMING EVENTS] [CALIFORNIA MILITARY HISTORY] [ONLINE BOOKSTORE]
[CALIFORNIA CENTER FOR MILITARY HISTORY] [LINKS]
FastCounter by LinkExchange
FastCounter by LinkExchange

Questions and comments concerning this site should be directed to the Webmaster

Classification	Amphitrite Class Monitor
Laid Down	1874
Launched	19 September 1883
Commissioned	20 February 1896
Builder	Phineas Burgess at the Continental Iron Works, Vallejo, Calif., and Mare Island Navy Yard, San Francisco, Calif.
Rig	One military mast
Armament	Four 10 inch (254 mm) breechloading guns Two 4 inch (100 mm) rapid fire guns Two 6 pounder (57 mm) rapid fire guns Two 3 pounder (47 mm) rapid fire guns Two 37 mm Hocthkiss guns Seven one pounder gun One Colt revolving guns
Length	262 feet, 9 inches
Beam	55 feet, 10 inches
Draft	14 feet, 6 inches
Displacement	3,990 tons
Complement	171 Officers and Enlisted Men
Engine Type	Two engines generating 1,600 hp., 2 screws
Speed	11.63 knots on trials
Coal endurance	1800 nautical miles at 10 knots
Normal coal supply	250 tons
Armor	Armor belt - 180 mm, iron.. Conning Tower - 190 mm Chimneys and ventilators - 100 mm to height of .9 m Deck - 40 mm Turrets - 292 mm (fixed portion) and 190 mm (movable portion) Double bottom under boilers and engines.
